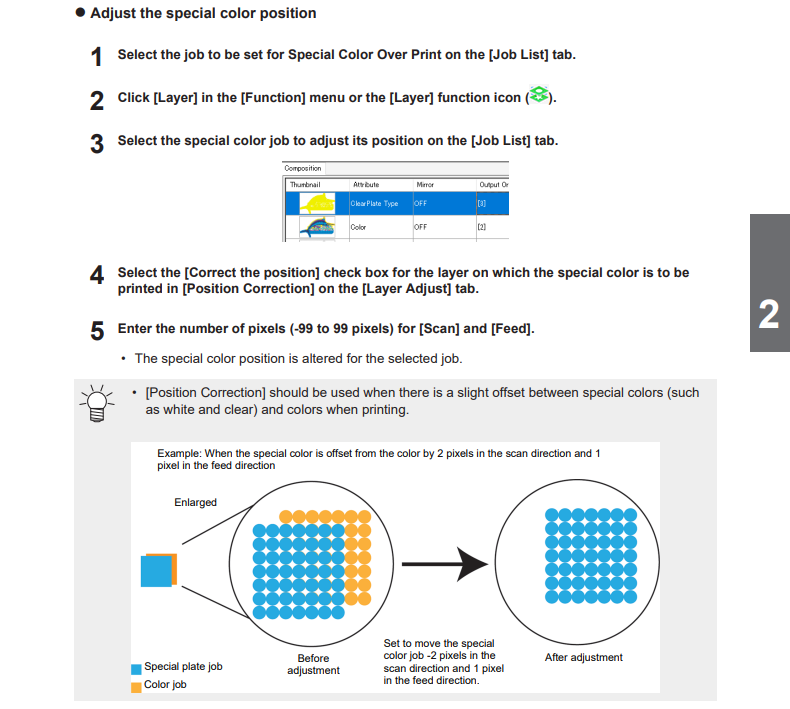

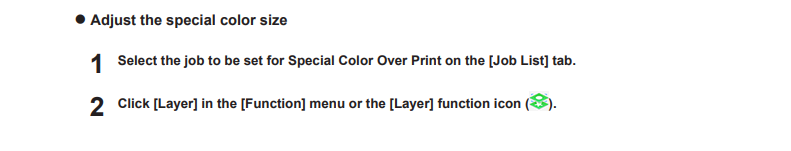

This article will cover how to resolve issues with layering on RasterLink 7. Below is information on how to adjust the special colour (white ink) position & how to thicken/thin your special colour (white) layer.
The snippets you see below are from pages 149 & 150 directly from the Reference Guide which is available on the Mimaki website, you can find it HERE.

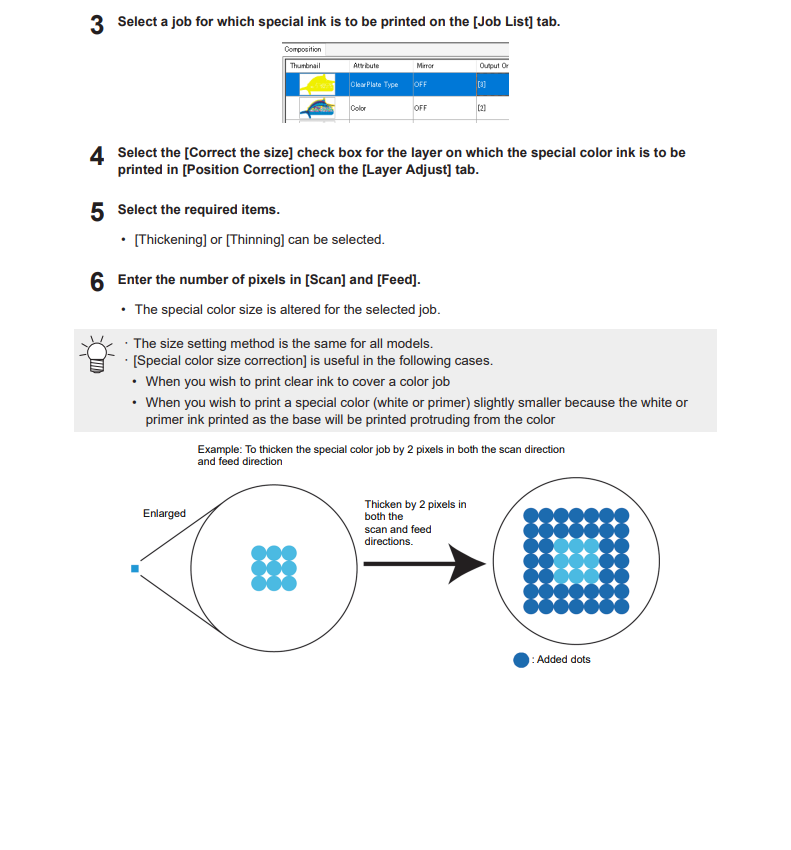

If the white layer is slightly larger or smaller than the CMYK print (showing a thin white outline), use the size correction feature. You can find more information on how to do this below.
Note: Excessive thickening may cause visible halos; thinning too much may expose unprinted gaps.
